Rendering is the process of converting widgets (or other sources, such as SVG) into images uploaded to a window. This page documents low-level architecture details of rendering.
On all platforms except web, the core rendering logic is pure Go, with cgo used for pushing images to the system window. On web, we use HTML canvas, as discussed later.

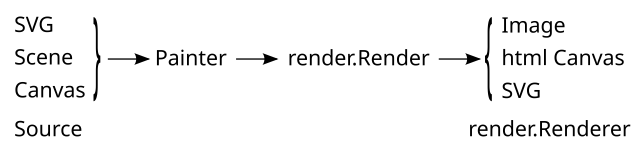

The overall flow of rendering is shown in this figure:
All rendering goes through the Painter object in the paint package, which provides a standard set of drawing functions, operating on a State that has a stack of Context to provide context for these drawing functions (style, transform, bounds, clipping, and mask). Each of these drawing functions is recorded in a Render list of render Items (see paint/render), which provides the intermediate representation of everything that needs to be rendered in a given render update pass. There are three basic types of render Items:
• Path encodes all vector graphics operations, which ultimately reduce to only four fundamental drawing functions: MoveTo, LineTo, QuadTo, and CubeTo. We adapted the extensive canvas package’s Path implementation, which also provides an ArcTo primitive that is then compiled down into a QuadTo.
• Text encodes text/shaped line(s) of text, which are most often rendered using automatically cached images of rendered font glyph outlines (svg and bitmap representations are also supported).
• Image drawing and related raster-based operations are supported by the paint/pimage package.
This standardized intermediate representation of every rendering step then allows different platforms to actually render the resulting rasterized result (what you actually see on the screen as pixels of different colors) using the most efficient rasterization mechanism for that platform. In addition, this internal representation has sufficient structure to generate SVG and PDF document outputs, which are typically more compact than a rasterized version, and critically allow further editing etc.
The paint/render package defines a Renderer interface that is implemented by the different types of renderers, which take the render.Render from the paint.Painter RenderDone() method as input and generate the different outputs.
On most platforms (desktop, mobile), the standard rasterization uses our version of the rasterx Go-based rasterizer, which extensive testing has determined to be significantly faster than other Go-based alternatives, and for most GUI rendering cases, is fast enough to not be a major factor in overall updating time. Nevertheless, we will eventually explore a WebGPU based implementation based on the highly optimized vello framework in Rust (see jello for a Go port).
On the web (js platform), we take advantage of the standardized, typically GPU-optimized rendering provided by the html canvas element (see paint/renderers/htmlcanvas). This is significantly faster than earlier versions of Cogent Core that uploaded Go-rendered images, and provides a hardware-accelerated rendering speed often faster than the desktop platform. This includes text rendering which requires a careful integration of Go and web-based mechanisms to perform internationalized text shaping (see text/shaped/shapers/shapedjs).
Core Scene and Widget rendering logic
At the highest level, rendering is made robust by having a completely separate, mutex lock-protected pass where all render-level updating takes place. This render pass is triggered by events.WindowPaint events that are sent regularly at the monitor’s refresh rate. If nothing needs to be updated, nothing happens (which is the typical case for most frames), so it is not a significant additional cost.
The usual processing of events that arise in response to user GUI actions, or any other source of changes, sets flags that determine what kind of updating needs to happen during rendering. These are typically set via core.WidgetBase.NeedsRender or core.WidgetBase.NeedsLayout calls.
Critically, most updates involve just one widget (and its children) that has updated its state or style in some way, and the rendering of the scene is cumulative so that only this one widget needs to be re-rendered, instead of requiring a full redraw of the entire scene for every update.
The first step in the renderWindow.renderWindow() rendering function is to call updateAll() which ends up calling doUpdate() on the core.Scene elements within a render window, and this function is what checks if a new layout pass has been called for, or whether any individual widgets need to be rendered.
Most updating of widgets happens in the event processing loop, which is synchronous (one event is processed at a time).
For any updating that happens outside of the normal event loop (e.g., timer-based animations etc), you must go through core.WidgetBase.AsyncLock and core.WidgetBase.AsyncUnlock (see async).
The result of the renderWindow() function for each Scene is a render.Render list of rendering commands, which could be just for one widget that needed updating, or for the entire scene if a new layout was needed.
The sprite system provides an additional top-level rendering layer that is always redrawn and can be used for dynamic content that can be positioned anywhere across the scene window.
Composer and sources
The system/composer manages the final rendering to the platform-specific window that you actually see as a user. It maintains a list of Source elements that provide platform-specific rendering logic, with one such source for each active Scene in a GUI (e.g., a dialog Scene could be on top of a main window Scene).
There are special Sources for direct rendering elements such as the xyz 3D Scene, or a video element, which render directly to the screen in an optimized, no-overhead manner.
For a Scene, the SceneSource manages getting the render.Render list from the paint.Painter on the Scene, and sends it to the platform-specific render.Renderer which is either the Go-based rasterx renderer or the web html canvas renderer, and then manages the display of the resulting image to the window.
For desktop and mobile, the final display is done using the gpu system that can “blit” the rendered image.RGBA image directly to the display window very efficiently using the GPU hardware. At some point, we will do the rendering on the GPU as well, in which case it will all happen directly on the GPU.
For web, the Composer manages a stack of canvas elements that are what you actually see on the browser, so the rendering updates to these canvas elements from the render.Render actions directly updates the visible display, without any further upload. Direct rendering of xyz happens by virtue of managing a webgpu canvas element that the xyz gpu system directly renders to.
Structure of the renderWindow
The overall management of rendering is organized as follows:
• renderWindow uses the system.Drawer interface (which is implemented using WebGPU on desktop, mobile, and web) to composite and “blit” (quickly render) all the individual image elements out to the actual hardware window that you see, layered in the proper order. On the web and offscreen (testing) platforms, Drawer is implemented using Go image.Draw functions, with no other hardware dependencies.
• stages in the renderWindow manages a stack of stage elements, each of which manages an individual core.Scene. There are different types of stage, specified by the core.StageTypes enum, including the main WindowStage for primary app content, DialogStage, MenuStage, TooltipStage etc.
• The stage also manages a collection of core.Sprites which provide lightweight graphical elements that are rendered over the top of the underlying content, for things like selection boxes, cursors, etc.
• The core.Scene is the base-level element that contains a coherent set of Widget elements, which are subject to mutual layout constraints and are all rendered onto a shared image. It specifies the content of a GUI element, whereas the stage has parameters that control the overall behavior and event processing, which are different for popups vs main windows.
